AVIDYNE AXP

AVIDYNE AXP-340 & MLB-100 ADS-B IN & OUT SYSTEM

avidyne

axp-340

ads-b out transponder

as well as an

mlb-100 ads-b in reciever

w/tray, connector and antenna

this system would give you everything you need to be ads-b compliant ( assuming you already have a waas gps source in the aircraft )

some of the features of the axp-340 transponder are

Affordable upgrade path to 2020 ads-b compliance
Slide-in replacement for …king kt-76c/76a/78a (would need different tray & connectors to fully utilize ads-b functions)
Tis alerts on compatible displays
Stop watch
Flight timer
240 watts
Altitude monitor
11-33 Volts
Push button operation

some of the features of the mlb-100 are

Using the 978 mhz datalink frequency band the mlb-100 receives the following….fis-b (weather, nexrad, metars, tafs, airmets,simets,& sua;s as well as temporary flight restrictions
This unit will also receive traffic info directly from nearby 978 mhz equipped aircraft
9-33 Volt
Designed to display traffic & weather info on avidyne ifd-540/440 as well as ex-600.ex-500 & ex5000 multi function displays

this auction includes

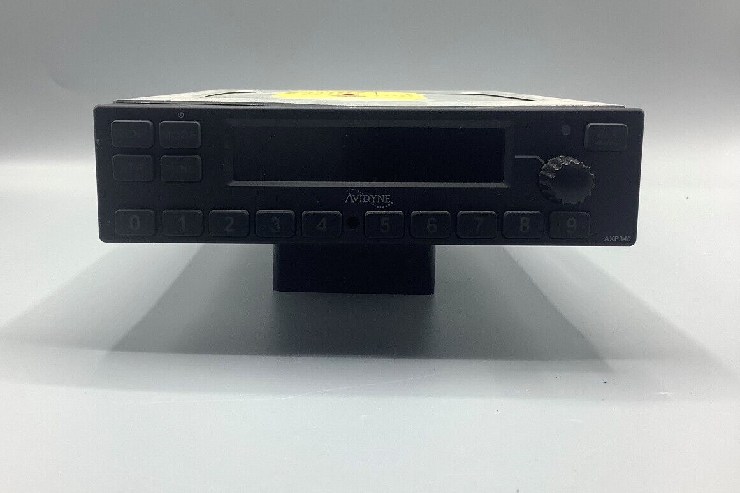

Axp-340 ads-b -out transponder…avidyne p/n….200-00247-000
Trig p/n…..011565-00-01
Mounting tray w/connectors prewired to connector for 15 pin encoder ( encoder not included ) p/n…200-00258-000
Mlb-100 ads-b-in receiver ….model…ads-600-b uat receiver..p/n…200-0011-02-07
Connector
Rami antenna ..p/n…av-74

if you already have the avidyne ifd-540/440 in your aircraft this system give you everything you need to be ads-b out compliant as well as all the additional safety features of ads-b in
