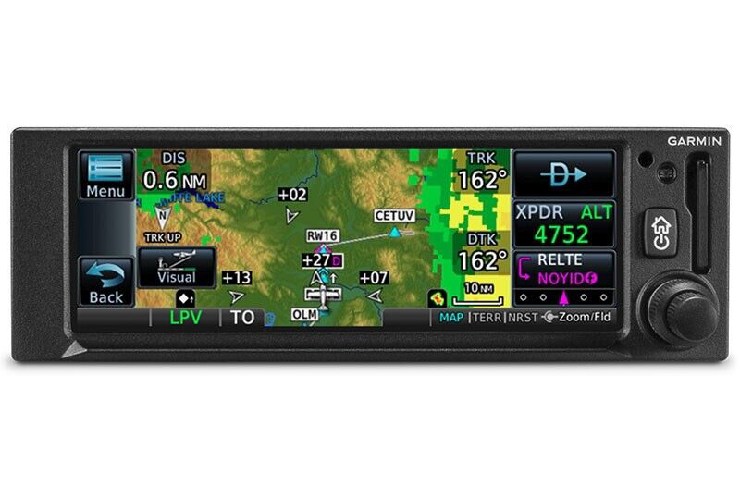

GARMIN GNX 375 WAAS NAVIGATOR

GARMIN GNX 375 WAAS NAVIGATOR WITH BUILT IN ADS-B IN/OUT TRANSPONDER w/8130-3

We have the newest units Garmin has to offer!
Gnx 375 waas navigator with built-in Ads-b In & Out transponder
be the first one at your airport to have  the latest Garmin Gnx 375 Waas navigator with built in Ads-b In/out transponder and greatest unit available at a fraction of the Price of New!

Some of the features of this system

Slim, all-in-one touchscreen GPS navigator and ADS-B transponder
for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and
experimental/amateur-built aircraft

  • Take advantage of WAAS GPS navigation with LPV approaches, which offer minimums as low as 200’ to greatly expand your operational capability
  • Built-in 1090 MHz ES transponder meets ADS-B “Out” requirements, while dual-link ADS-B “In” receiver provides display of traffic and subscription-free weather
  • Wirelessly transfer flight plans and stream weather, traffic, GPS position and backup attitude via built-in Connext® wireless technology to the Garmin Pilot™ app and more
  • Visualize your entire flight plan, including departures, arrivals, instrument approaches, holding patterns and more on a rich, dynamic global moving map
  • Pairs with select Garmin flight displays, or integrates directly with your existing course deviation indicator (CDI) for cost-effective installation¹
  • 9-32 volts
  • 4/8” diagonal display
  • 732 pixels
  • Max altitude 30,000ft with included GAE micro encoder
  • Bluetooth version 4.2

This sale includes

GNX 375 panel unit pn 011-04378-00-New data card pn 010-01431-01(blank no nav info)
-GA 35 WAAS antenna
-mounting tray
-back plate
-connectors
-Garmin micro encoder pn 011-0308–01
-install manual(PDF)
-Garmin 8130-3 return to service

form dated December 18th, 2019

This unit has the following software versions & active databases:

  • Main SW 3.03
  • Gps SW 8.0
  • Xpdr SW 2.53
  • Navigation 2002 USA expired 2/2020
  • Basemap 19M1Version 5.16
  • Obstacle 19B7 expired 1/2020
  • Safetaxi 19S7 US expired 1/2020
  • Terrain 16T1 type 4.9AS
